1853 - 1924
The first to use an electric light bulb to illuminate the human bladder
David Newman (1853 - 1924) was born in Partick, Glasgow in 1853. His father, Edward Newman, was a Royal Naval Surgeon. Newman studied medicine at the University of Glasgow, graduating in 1878. He then travelled to Leipzig to further his studies before returning to Scotland as houseman at the Glasgow Western Infirmary.
In 1879 he was appointed as a pathological chemist. Working as assistant to Dr Joseph Coates, the pathologist and John Grey McKendrick, Professor of Physiology, Newman came to realise the importance of clinical laboratories. In 1881, he became Pathologist and Lecturer in Pathology at the Royal Infirmary, a newly created position. In 1882, he was appointed Surgeon to the Out-Door (outpatients) Department back at the Western General.
In 1883 he was awarded an MD with a commendation. The subject of his thesis was "Malpositions of the Kidney", clearly a subject he had been able to study in the pathology laboratory.
Read the orignial article in the Glasgow Medical Journal
Newman then spent some years as surgeon to the Throat Department from 1884 at the Western General Hospital then, from 1890, at the Royal Infirmary. He developed a great interest in throat surgery publishing a popular book in 1892 on malignant diseases of the throat and nose. However, he continued to have a particular interest in diseases of the urinary tract and gave a series of clinical postgraduate lectures on renal disease. In 1888, he published the lectures in book form.
In 1892, he was made Visiting Surgeon to Glasgow Royal Infirmary. Although very much the general surgeon, he became internationally recognised for his interest in urology, and renal disease in particular. He was an early pioneer of renal surgery when this was still in its infancy. The first nephrectomy was carried out as late as 1870, and open renal surgery was slow to take off. However, Newman was an early proponent of nephropexy (the fixation of an abnormally mobile kidney) and carried out open surgery to remove stones from ureters.
His expertise was recognised when, in 1908, he was invited to open the surgical section of the 1908 BMA meeting in Sheffield with a talk on “The indications for nephrotomy and nephrectomy”.
Read the original article in the British Medical Journal (library subscription required)
He was also an early user of the cystoscope. In fact, David Newman was the first person in the world to use an electric light bulb to illuminate the human bladder.
Click on any image to view it in full-screen (in a new browser window)

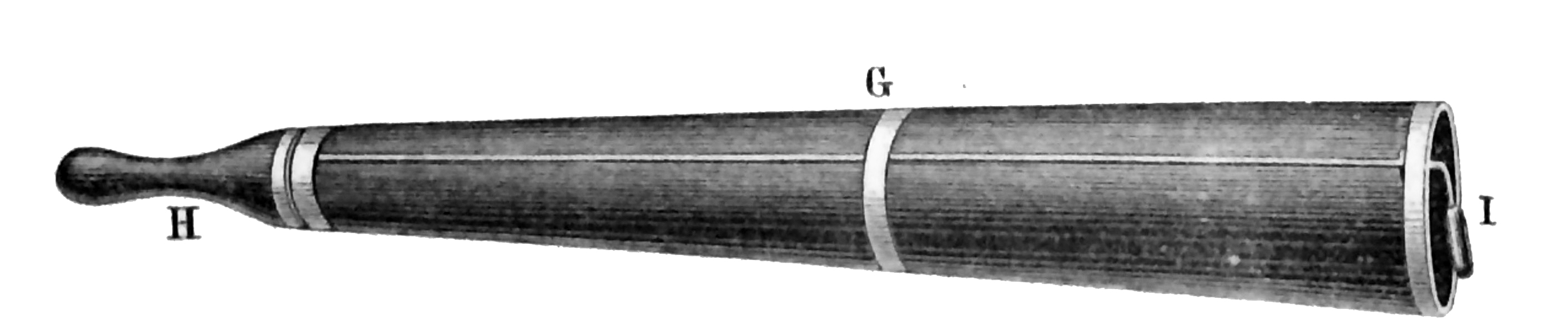

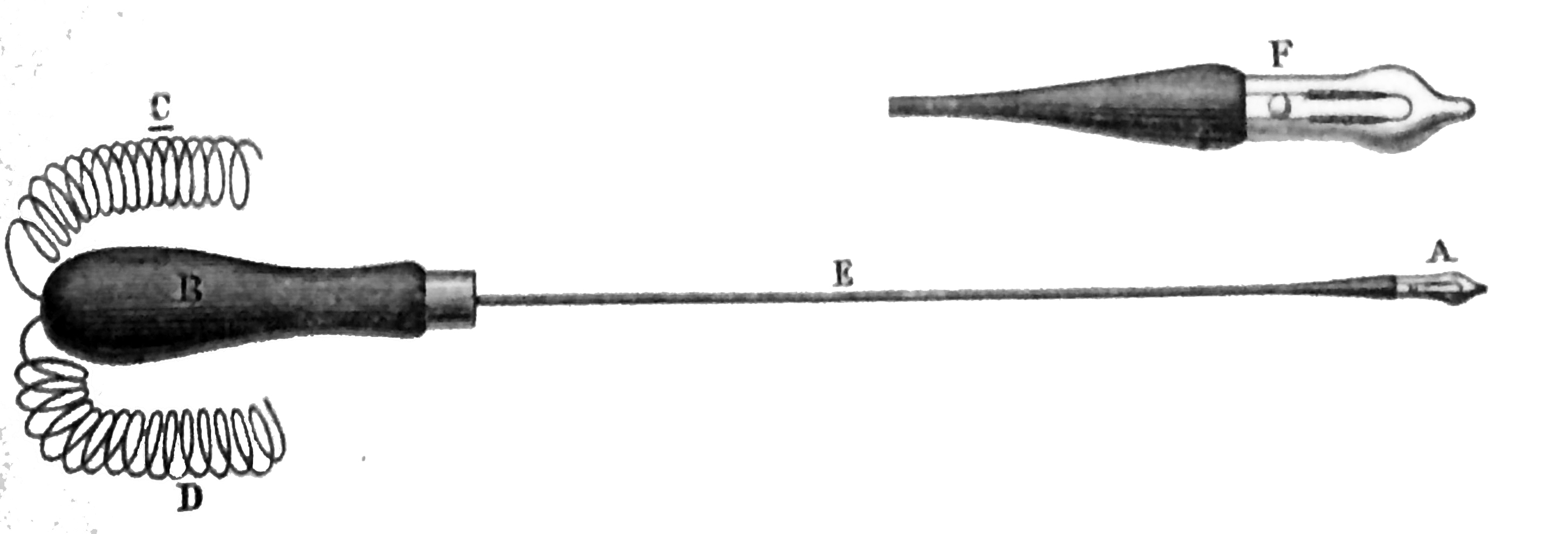

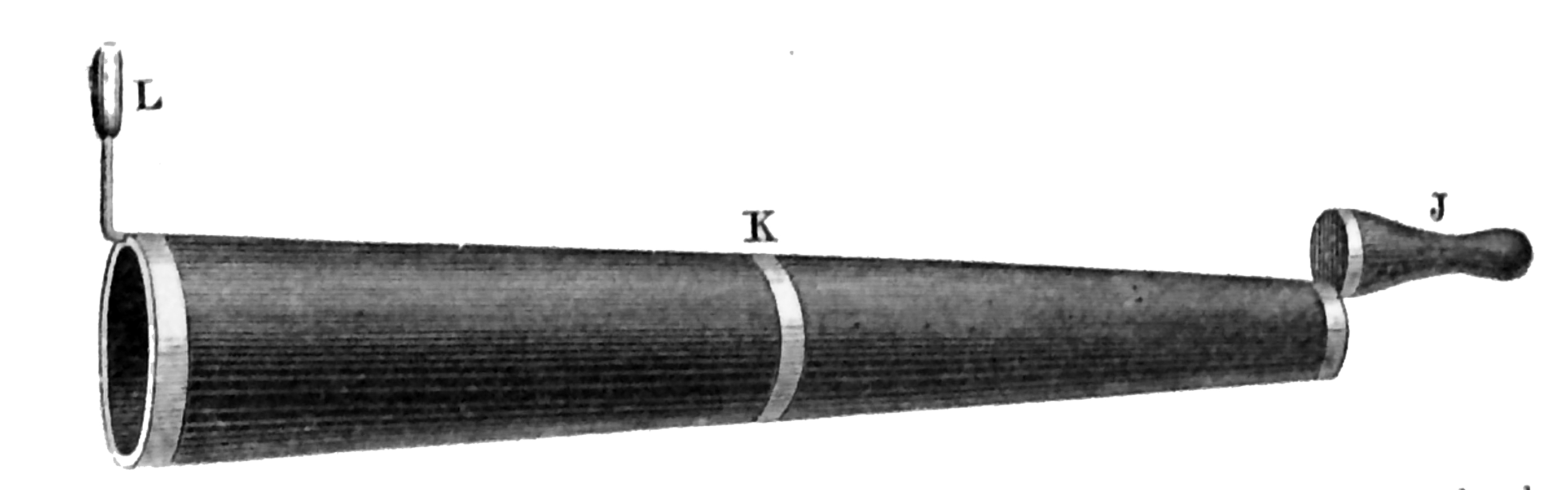

On 18 January 1883, Newman used an early Swann-Edison incandescent light bulb to illuminate a female bladder; this enabled him to see and catheterise the ureters. The bulb was at the end of a long handle and connected by wires to two Grove’s Cells (batteries). Alongside this, a cone-like speculum made of vulcanite (an early hard rubber) was placed so that Newman could look through into the bladder (see images above). The apex was movable so it could be rotated away with a small handle, allowing Newman to look through the small glass window in the end. Newman could catheterise the ureters and sample the urine to diagnose and lateralise renal disease. He described this early endoscopy as:
"The bladder is first washed out with a warm solution of boracic acid, so as to remove all the urine. It is now distended with eight ounces of the boraeic acid solution, and the electric lamp is introduced through the urethra without being connected with the battery. It is important that the lamp should be introduced before the circuit is completed, as if this precaution be not taken, the lamp is apt to become heated, and may crack when it is passed into the fluid contents of the bladder. Two gum-elastic catheters (No. 2) should now be passed, and after them the speculum is introduced with the cover (H) in position. The current is now passed through the lamp, the cover (J) of the speculum is rotated and on inspection the structures forming the floor of the bladder are easily seen. The speculum should be passed so far into the bladder that the small end, closed by the glass disc, is about a quarter of an inch beyond the inner orifice of the urethra. The ureters are easily seen and may be catheterised".
Newman continued to use & improve the cystoscope, and gave an invited lecture on “The cystoscopic appearances of the bladder in renal disease” at the 17th International Medical Congress held in London in 1913 - Newman was Vice President of the Urological Section. He was also a member of the International Association of Urology, the predecessor of the SIU. When he was applying for the Chair of Clinical Surgery in Glasgow in 1908, his referees included Sir Henry Morris (who performed the first nephrolithotomy), Henry Clutton (of urethral sounds fame) and the urologists, Edwin Hurry Fenwick, Reginald Harrison and Sir Peter Freyer. Unfortunately, he still didn’t get the job.
Although he retired in 1914, on the outbreak of the First World War, he volunteered to run the Infirmary while the younger men went off to fight. After he retired again, he left Glasgow and moved to London. However, he maintained an active association with medical and surgical matters.
In 1924, Newman and his wife visited Australia- this ws clearly more than holiday because he visited various surgical units. Sadly, on the voyage home on the SS Argyllshire, in the Indian Ocean, somewhere south west of Freemantle, on 22 April 1924, he died suddenly and was buried at sea.
